This layer builder is a community-created tool developed as part of the SquadCalc project.

It was designed to support Offworld's Community Layers process and allows community members and developers to quickly prototype layer ideas using templates for common features such as flag clusters, lanes, and custom map borders.

This tool does not generate a playable in-game layer. It is only intended for designing and visualizing layer concepts on the map. The layout can then be used as reference material for developers or modders working in the Unreal Engine editor. Any elements created here must be manually recreated and interpreted when implementing the layer in the game, so designs should remain clear and easy to read.

How does a random layer work ?

The RAAS and Invasion game modes in Squad use semi-randomized logic to determine where the flags will be when the map is loaded.

There are two elements of randomness in this process: Lanes and Clusters. The core of building any RAAS or Invasion layer is understanding how to use them. A cluster is a set of possible flags. The number of clusters determines how many flags will be in each lane. A lane is simply a string of clusters, joined together sequentially.

When the game loads a new layer, it picks a random lane and sticks with it. It then goes through each cluster in that lane and, at each step, randomly selects one flag from the flags available in that cluster.

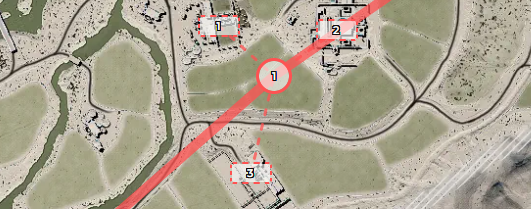

Try creating a lane with clusters and some flags for each cluster, and use the TRY IT button to visualize the possible outcomes :

BUILDING YOUR LAYER

The Core

There are three main steps to building a layer using this tool. First, add a new lane using Add Lane, then add clusters to that lane using Add Cluster. Finally, add flags to each cluster within the lane.

• Move main bases, clusters and flags by dragging
• Right-click to delete flags or entire clusters

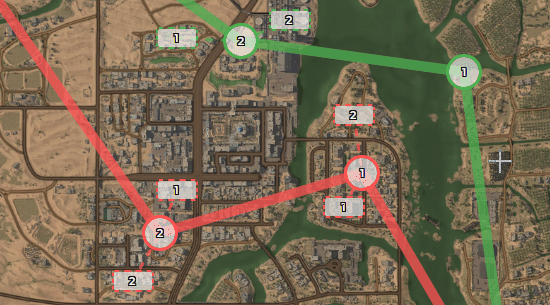

• Drag clusters from different lanes on top of one another to copy them

Advanced Configuration

Once the layer is drawn, you can focus on the details :

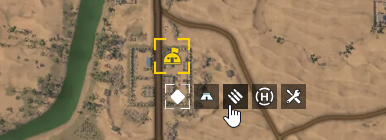

• Right-click on the map to add icons used for main bases (helipads, ammo crates, spawnpoints, repair stations)
• Left-click on flags to set the capture zone name, shape, and optionally link the flag to another cluster
• Left-click on main bases to modify the protection and no-deployment radii
• Download your layer as a JSON file, or upload to view

Saving & Sharing it

Once the layer has been built, and to save your work you can :

• Save it localy by downloading it in .json
• Copy a sharable link for later (Complex layers may require a URL shortening service.)

COMMON MISTAKES

Placing clusters without flags

A cluster by itself is not a flag; even if designing a layer with one flag per cluster, a flag is still required. The cluster, like the lane, is a set of probabilities, not something that players can interact with directly.

Too few or too many clusters

The standards are as follows:

• 7 Flags for large RAAS
• 5 Flags for medium/small RAAS
• 5 Flags for Invasion

Deviations from these standards are allowed, but the impacts of adding or removing clusters needs to be considered. For Invasion, adding more clusters to a lane would make games longer on average.

All lanes must be the same length. (the same number of clusters)

Information Disadvantages

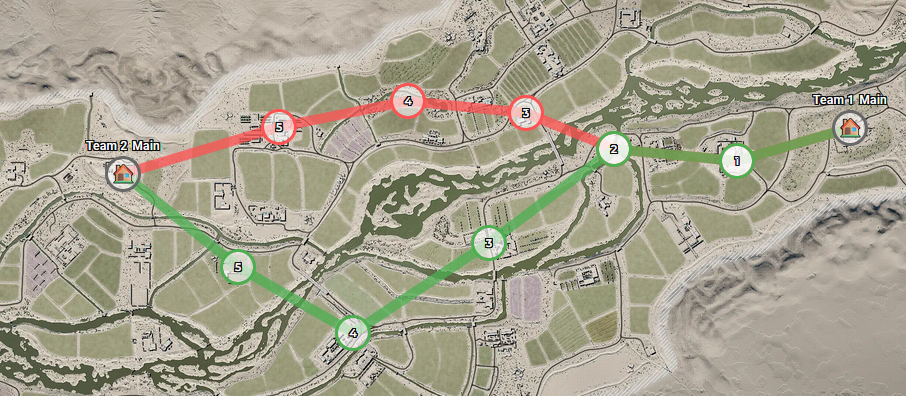

Avoid creating asymetrical information : For example if a flag is only part of one single lane/cluster, then the team seing the flag will know the rest of the layer. Make sure both teams discover the complete layer at the same time.

Too Many Lanes or Flags Per Cluster

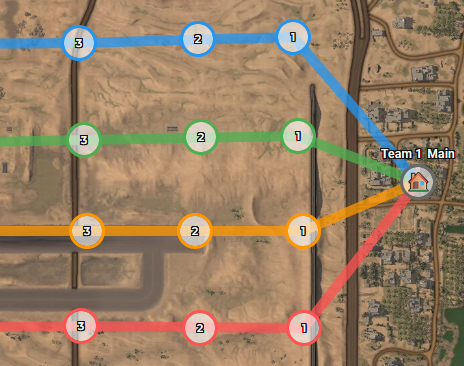

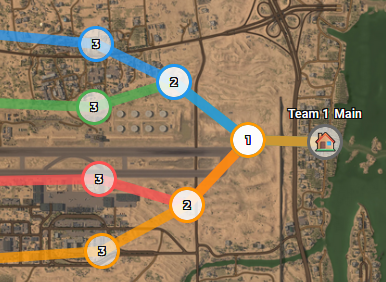

Generally speaking, the more lanes that are used, the more information the player will be able to determine about the lane early in the round, assuming fog of war is enabled. Whereas fewer lanes with larger clusters will be more random. Design the layer to match the desired outcome.

Horseshoe-Shaped Layouts

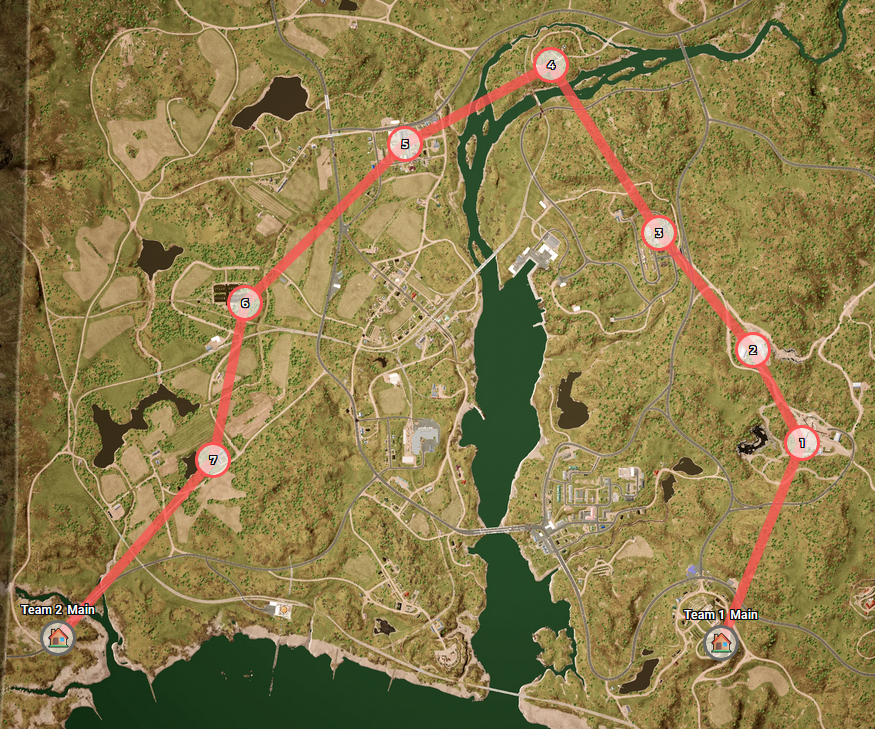

A good rule to follow is that the middle flag(s) should be placed along a line between the main bases representing the shortest travel time between them. If the main bases are closer to each other and the first flags than they are to the midpoint, this will incentivize backcap rushing and maincamping.

Defender Reachability & Rollout Balance

In Invasion, avoid creating layers where the defenders cannot reasonably establish on the first flag within the staging time limit. If necessary, drive the route in-game to check.

In AAS/RAAS, watch out Travel time on rollout being skewed too far towards one main base. Major structural advantages/disadvantages should be avoided when designing layers. Assume that both teams will drive towards the midpoint between main bases, and ensure that the ratio of flags on either side is not too lopsided.

SUBMITTING A LAYER

There is no official submission process defined by OffWorld yet.

It is expected to be available in about three weeks.
